Classic Padel Court333

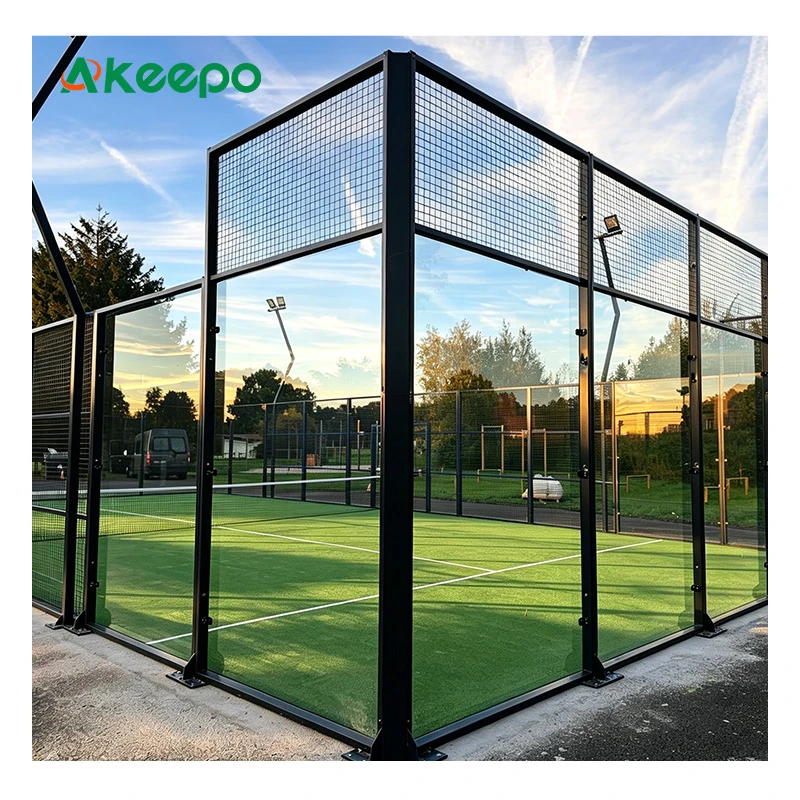

The Classic Padel Court is a durable and practical model that combines glass end walls with protective wire mesh side walls. It balances aesthetics and functionality, making it suitable for schools, communities, sports clubs, and outdoor venues in a wide range of climates including coastal areas.
MOQ: 1 Set · Factory-Direct Price · FOB on RequestKey Highlights
- Glass end walls for clear visibility and rebound
- Protective wire mesh side walls for cost efficiency
- Q235 hot-dip galvanized steel frame with outdoor powder coating
- Strong wind and typhoon resistance
- 12mm tempered safety glass with 3C certification
- Standard 20m × 10m FIP doubles court dimensions
Product Details
A closer look at the structure, materials and performance that make the AKEEPO court a reliable long-term investment.
Classic Panel-Net Design
The Classic model delivers a clean, practical panel-net enclosure that balances open sightlines with cost-efficient construction — a reliable choice for schools, communities and commercial venues.
Durable Steel Frame
Every post and beam is built from galvanized steel with an outdoor-grade coating, resisting rust, UV and salt-air corrosion for long service life in coastal and high-humidity environments.
Safe & Stable Structure
Reinforced corner posts and anchored foundations give the Classic court strong wind and weather resistance, while the panel-net surface keeps play safe and contained.

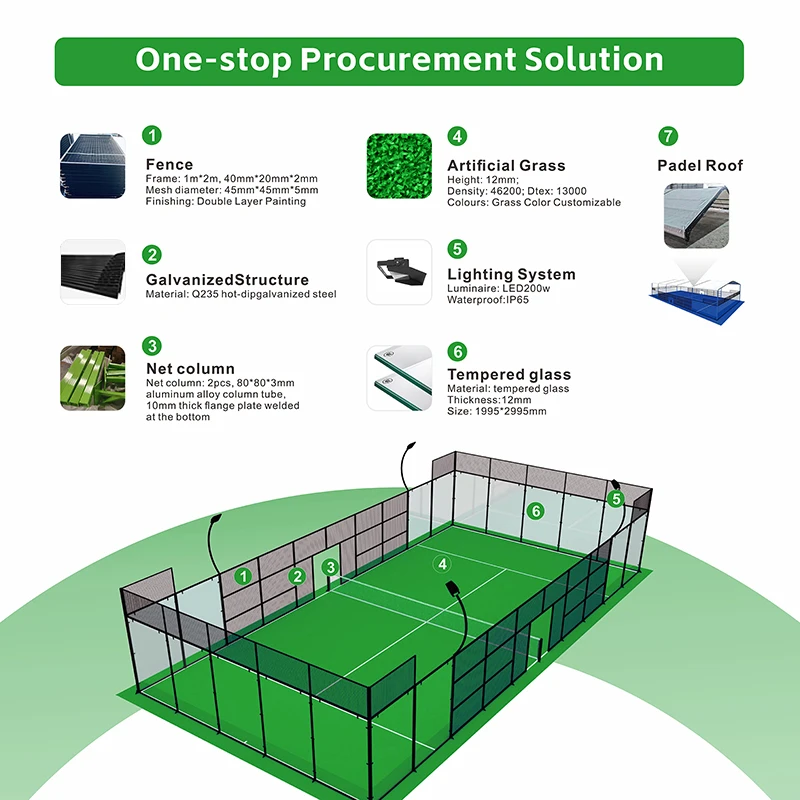

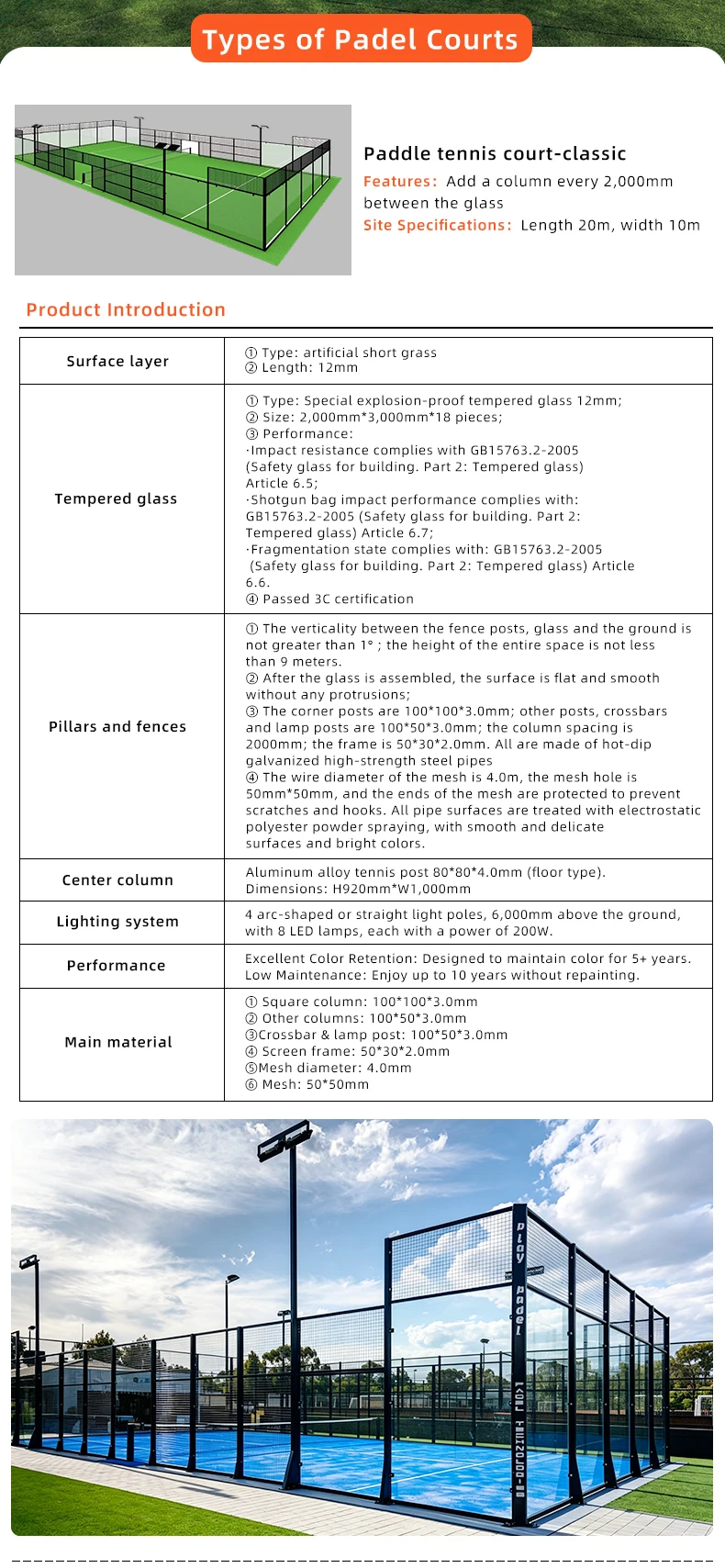

Technical Specifications
| Model | NT-020 |
|---|---|
| Court Size | 20m × 10m (21m × 11m total footprint) |
| Corner Posts | 100×100×3.0mm hot-dip galvanized steel |
| Other Posts | 100×50×3.0mm hot-dip galvanized steel |
| Frame | 50×30×2.0mm hot-dip galvanized steel |
| Glass | 12mm tempered safety glass, 2000×3000mm × 18 pieces |
| Mesh | 4.0mm wire, 50×50mm mesh, polished edges |
| Turf | 12mm short-pile artificial grass, 40,000 stitches/m² |
| Lighting | 4 × 6m poles with 8 × 200W LED lights |
| Net Posts | Aluminum alloy 80×80×4.0mm, H920mm×W1000mm |

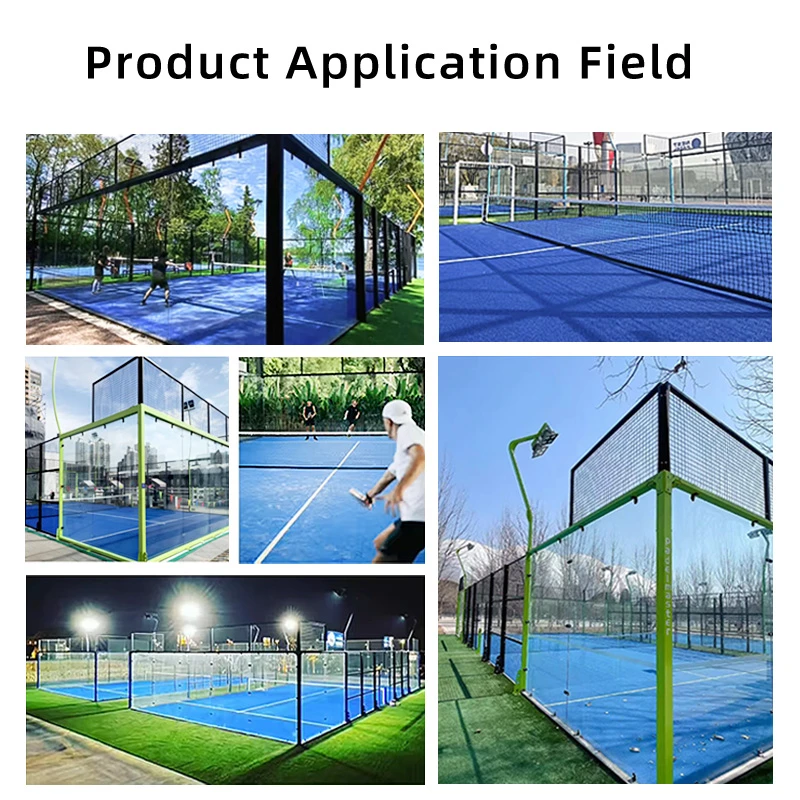

Applications
Schools & universities
Community sports centers
Outdoor commercial venues
Coastal and typhoon-prone regions
